Fire Hydrant Systems

Fire hydrant systems are essential components of fire protection infrastructure, providing a reliable source of water to combat fires. They consist of a network of hydrants connected to underground water supply pipes, strategically located throughout urban and rural areas to facilitate quick access for firefighting efforts.

Key Components:

A fire hydrant systems typically includes the following components:

Fire Hydrants: These are the visible units from which firefighters draw water. They can be categorized into two main types:
- Wet Barrel Hydrants: Always filled with water, suitable for warmer climates.
- Dry Barrel Hydrants: Filled with water only when in use, ideal for freezing conditions.
Hose Reels: Portable hoses that can be quickly connected to hydrants for immediate firefighting efforts.
Control Valves: Used to manage the flow and pressure of water within the systems.
Pipes: Interconnected pipes of varying diameters deliver water from the supply source to the hydrants. The size is determined by the required flow rates and pressure specifications.

Functionality:

Flow Rate and Pressure: The effectiveness of a hydrant systems depends on its flow rate (measured in gallons per minute) and pressure (typically requiring a minimum of 20 psi). These metrics are influenced by factors such as building classification and fire hazard level
Hydraulic Analysis: A hydraulic analysis is conducted during the design phase to ensure adequate pressure and flow at all hydrants, particularly at the most hydraulically disadvantaged locations

Maintenance and Inspection:

Regular maintenance is crucial for ensuring that fire hydrant systems function correctly during emergencies. This includes:

Routine Inspections: Monthly, semi-annual, and annual inspections are necessary to check for leaks, damage, or operational issues.
Winterization Procedures: In colder climates, procedures must be implemented to prevent freezing, such as draining water from dry barrel hydrants
Compliance with Standards: Fire hydrant systems must adhere to established standards for installation, maintenance, and operation

Jockey Pumps

Jockey pumps are specialized fire protection pumps designed to maintain pressure within fire sprinkler systems when there is no water flow. They play a crucial role in preventing the main fire pump from short cycling and ensure that the systems remains ready for immediate use in case of a fire emergency.

Key Functions of Jockey Pumps:

Pressure Maintenance: Jockey pumps keep the pressure in the fire protection systems within preset limits, compensating for minor leaks and normal pressure drops. This helps to avoid unnecessary activation of the main fire pump.
Automatic Operation: These pumps are designed to start automatically when the systems pressure falls below a certain threshold, thus replenishing the systems pressure without waiting for the main fire pump to activate.
Preventing Short Cycling: By maintaining adequate pressure, jockey pumps help extend the lifespan of the main fire pump by preventing it from starting and stopping frequently (short cycling) due to minor pressure fluctuations.

Design and Sizing:

Type: Jockey pumps are typically centrifugal pumps, selected for their efficiency in maintaining pressure.
Sizing Guidelines: The jockey pump should be sized to handle allowable leakage rates and normal drops in pressure. For example, it is often recommended that the jockey pump flow rate be less than that of a single sprinkler head to ensure that the main pump activates when needed.
Pressure Requirements: The discharge pressure of a jockey pump should exceed that of the main fire pump by at least 10 psi to avoid false activation of the main pump.

Components of a Jockey Pump System:

Pump: The primary component responsible for maintaining systems pressure.
Control Valves: These include isolation valves that allow for maintenance and check valves that prevent backflow into the pump.
Pressure Sensing Line: A dedicated sensing line monitors systems pressure and triggers the jockey pump as needed.

Regulatory Standards:

Jockey pumps must comply with various standards, such as those set by NFPA (National Fire Protection Association). While they are not required to be listed or approved, they must meet specific performance criteria to ensure reliability.

Maintenance Considerations:

Regular maintenance is essential for ensuring the effective operation of jockey pumps:

Routine Inspections: Regular checks on pump operation and systems pressure.
Testing: Periodic testing to confirm that the jockey pump activates correctly under low-pressure conditions.
Component Checks: Inspecting valves and other components for wear or malfunction.

Jockey pumps are vital for maintaining fire protection systems readiness by ensuring consistent pressure levels. Their design, operation, and maintenance are critical for effective fire safety management in buildings. Understanding their function helps ensure compliance with safety standards and enhances overall fire protection strategies.

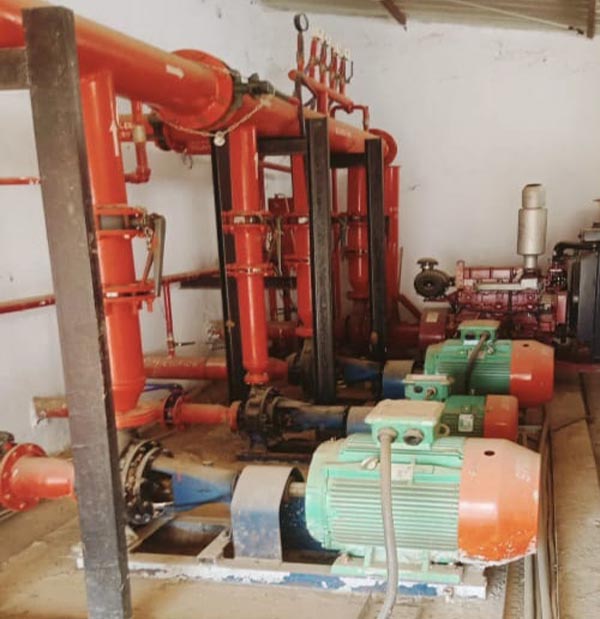

Fire Pumps

Fire pumps are essential components of fire protection systems, designed to enhance water pressure for effective firefighting. They are particularly crucial in situations where the existing water supply is inadequate, such as in high-rise buildings or remote areas. Fire pumps ensure that water flows at sufficient pressure to activate sprinkler systems and deliver water through standpipes and hydrants.

Key Functions of Fire Pumps:

Increase Water Pressure: Fire pumps boost the pressure of water supplied from municipal sources, tanks, or reservoirs, ensuring adequate flow rates for fire suppression.
Activate Automatically: When a fire occurs and the pressure in the systems drops (e.g., due to sprinkler activation), fire pumps automatically engage to maintain pressure and flow.
Support Fire Suppression Systems: They work in conjunction with sprinkler systems, standpipes, and other firefighting equipment to provide critical water supply during emergencies.

Types of Fire Pumps:

Centrifugal Pumps: These are the most common type of fire pump, using centrifugal force generated by a rotating impeller to increase water velocity and pressure.
Positive Displacement Pumps: Typically used in specialized applications like foam systems, these pumps move water by trapping a fixed amount and forcing it into the discharge pipe.
Diesel Engine-Powered Pumps: Reliable and effective, these pumps are often used in areas where electricity may not be available. They require a fuel storage tank and batteries for starting.
Electric Motor-Powered Pumps: These provide a consistent power source and are commonly used when reliable electrical supply is available.
Steam Turbine Pumps: Less common than diesel or electric options, these use steam as a power source but are typically found in specific industrial applications.

Components of Fire Pump Systems:

Pump: The heart of the systems that creates pressure.
Driver: The power source (diesel engine, electric motor) that drives the pump.
Controller: Manages the operation of the pump, including starting and stopping based on systems pressure readings.
Accessories: Include valves, gauges, and piping necessary for the systems's operation.

Importance of Maintenance:

Regular maintenance is critical for ensuring that fire pumps function correctly during emergencies. Key maintenance tasks include:

Weekly Inspections: Visual checks to ensure readiness.
Annual Testing: Full operational testing simulating emergency conditions.
Calibration of Gauges: Ensuring accurate readings for pressure and flow.
Lubrication: Keeping mechanical parts functioning smoothly.
Impeller Inspection: Checking for wear that could affect performance.

Fire pumps are vital for effective fire protection in buildings and facilities. Their ability to enhance water pressure ensures that firefighting systems can operate efficiently when needed most. Regular maintenance and adherence to safety standards are essential to guarantee their reliability and effectiveness in emergencies.
