Fire Alarm Systems

Fire Alarm Systems


A fire alarm system is a building system designed to detect and alert occupants and emergency forces of fire, smoke, carbon monoxide, or other fire-related emergencies. These systems are required in most commercial buildings and may include smoke detectors, heat detectors, and manual fire alarm activation devices1. Fire alarm systems use visual and audio signals to warn building occupants. Some systems may also disable elevators, which are unsafe to use during a fire.


Parts of a Fire Alarm System

  • Fire Alarm Control Panel (FACP): The hub of the system that monitors inputs and system integrity, controls outputs, and transmits information.
  • Remote Annunciator: Connects directly to the panel and allows emergency personnel to view the system status and take command.
  • Primary Power Supply: A non-switched 120 or 240-volt alternating current source supplied by a commercial power utility.
  • Secondary Power Supplies: Emergency power sources, such as sealed lead-acid storage batteries or generators, that provide energy during a primary power failure.

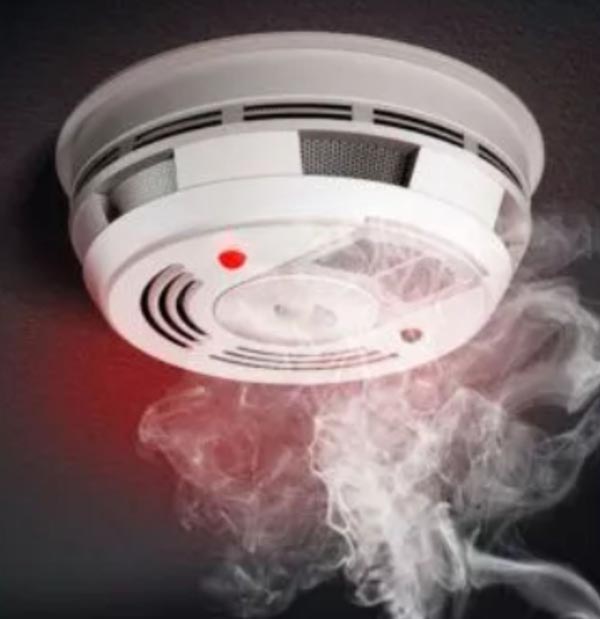

  • Initiating Devices: Components that act as inputs to the fire alarm control unit and are manually or automatically activated. These include pull stations, heat detectors, duct detectors, and smoke detectors.
  • Fire Alarm Notification Appliance: Uses energy from the fire alarm system or another stored energy source to inform people nearby of the need to take action, usually to evacuate, through audio and visual signals like strobe lights, horns, sirens, chimes, bells, or loudspeakers.
  • Building Safety Interfaces: Allows the fire alarm system to control aspects of the building environment, prepare the building for fire, and control the spread of smoke by influencing air movement, lighting, process control, human transport, and availability of exits.

Types of Fire Alarm Systems

  • Automatic Fire Alarm Systems: Activated through fire detectors, such as smoke or heat sensors.
  • Manual Fire Alarm Systems: Activated with manual call points or pull stations.
  • Conventional Fire Alarm Systems: Use physical cabling to interconnect call points and detectors, with signals wired back to the main control unit in zones.
  • Addressable Fire Alarm Systems: Each detector has a set address, allowing the control panel to determine exactly which detector or call point initiated the alarm.
  • One-Stage Fire Alarm Systems: Warn everyone in the building when a sensor is activated.
  • Two-Stage Fire Alarm Systems: Warn only authorized people to take action before the second stage, often used in large public areas to prevent panic.
  • Wireless Fire Alarm Systems: Do not use wiring between the fire control panel and other devices

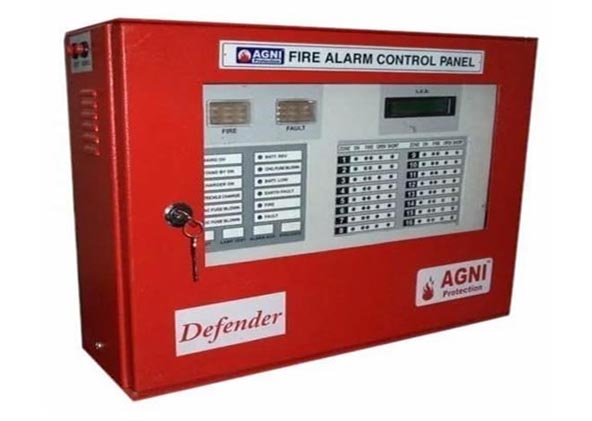

Fire Alarm Control Panels

Fire alarm control panels (FACPs) are the central components of fire alarm systems, responsible for detecting fires, alerting occupants, and coordinating emergency responses. These panels serve as the "brain" of the fire protection systems, integrating various devices and ensuring effective communication during emergencies.


Key Functions of Fire Alarm Control Panels:

  • Detection and Monitoring: FACPs continuously monitor signals from various initiating devices such as smoke detectors, heat detectors, and manual pull stations. When these devices detect a fire hazard, they send signals to the panel.
  • Alarm Activation: Upon receiving an alarm signal, the FACP activates audible and visual alarms throughout the building to alert occupants. This may include sirens, bells, and flashing lights to ensure everyone is aware of the emergency.
  • Emergency Notifications: The panel can notify external monitoring centers or fire departments automatically, ensuring that emergency responders are alerted promptly.
  • Control of Fire Safety Equipment: FACPs can control other fire protection systems, such as activating fire suppression systems, smoke extraction systems, and closing fire doors. They also manage elevator operations during emergencies by decommissioning them or allowing fire brigade access.
  • Status Display: Modern FACPs feature digital displays that provide real-time information about the systems's status, including active alarms and any trouble signals indicating issues such as wiring faults or device malfunctions.

Types of Fire Alarm Control Panels:

  • Conventional Panels: These panels categorize a building into zones. When an alarm is triggered in a specific zone, the panel indicates that an alarm has been activated in that area but does not specify which device caused it.
  • Addressable Panels: Each device connected to an addressable panel has a unique address. This allows the panel to identify precisely which device has activated, enabling quicker response times from emergency personnel.

Importance of Maintenance:

Regular maintenance of fire alarm control panels is essential to ensure their reliability:

  • Routine Testing: Conducting regular tests to verify that all components function correctly.
  • System Updates: Keeping software and firmware up to date to enhance performance and security.
  • Troubleshooting: Addressing any trouble signals promptly to maintain systems integrity.

Fire alarm control panels are vital for ensuring safety in buildings by detecting fires and coordinating emergency responses effectively. Understanding their functions, types, and maintenance requirements is crucial for building managers and safety personnel to ensure compliance with safety regulations and protect lives and property during emergencies.
